Material : Enclosure and parts, door : 1,00 – 1,50 mm mild steel
Surface Process : Mild Steel Parts : Iron-phosphate plated, RAL7035 Rough Epoxy, polyester powder-coating
IP Rate : IP66, (EN 60 529)

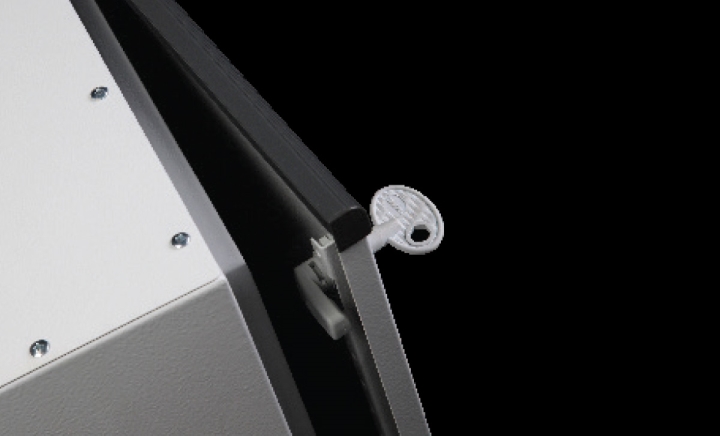

Supply Includes : 1 pcs body, 1 set bottom-top lid, 1 pcs front door, 2 pcs door support rail, 1 pcs door key.
Please see page 268 for technical drawings.
| PDF |
ARES REF. NO |
WIDTH (W) |
HEIGHT (H) |
DEPTH (D) |
LOCK |
HINGE |
WEIGHT (kg) |
 |
101.350 |
300 |
400 |
150 |
1 |
2 |
4,4 |
|
101.351 |
300 |
400 |
200 |
1 |
2 |
4,9 |
|
101.352 |
400 |
400 |
200 |
1 |
2 |
6,0 |
|
101.353 |
400 |
500 |
200 |
1 |
2 |
7,0 |
|
101.354 |
400 |
600 |
200 |
2 |
2 |
8,1 |
|
101.355 |
400 |
600 |
280 |
2 |
2 |
9,4 |
|
101.356 |
500 |
600 |
200 |
2 |
2 |
10,0 |
|
101.357 |
500 |
700 |
200 |
2 |
2 |
11,3 |
|
101.358 |
500 |
700 |
280 |
2 |
2 |
12,9 |
|
101.359 |
600 |
800 |
200 |
2 |
2 |
14,4 |
|
101.360 |
600 |
800 |
280 |
2 |
2 |
16,2 |
|
101.361 |
600 |
1000 |
280 |
2 |
3 |
23,6 |
|
101.362 |
600 |
1150 |
280 |
3 |
3 |
26,6 |
|
101.363 |
800 |
1000 |
280 |
2 |
3 |
29,2 |
|
101.364 |
800 |
1150 |
280 |
3 |
3 |
32,8 |
