FBC Connectors for Connecting without Drilling
FBC Connectors for Connecting without Drilling
Product Features
Product Catalogue
Technical Documents
Certificates

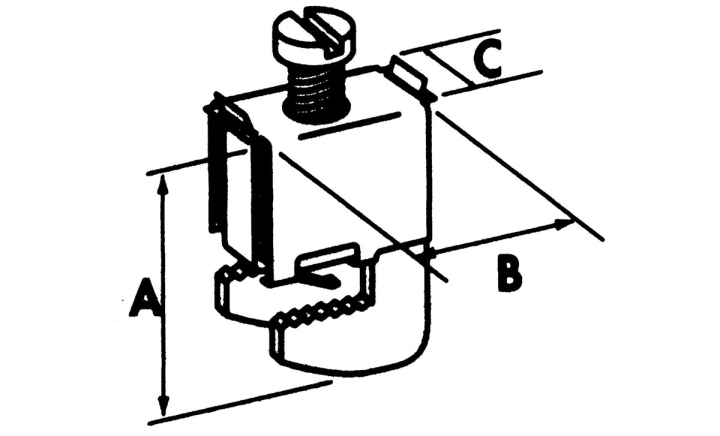

Dimensions
Applicable to non-perforated busbar combinations.
Applicable to 5-10 mm busbar thickness.
Cables from 1 mm2 up to 185 mm2 or flexibar width 6 to 20 mm
PDF
EXPLANATION
A(mm)
B(mm)
C(mm)
-
CABLE SIZE mm2
PACKAGE PCS
REFERENCE NO
FBC 5x4
23
29
11
4
15
553.405
FBC 5x6
27
23
11.5
6mm
2,5-16
15
553.400
FBC 5x9
38
40
19
9mm
16-50
15
553.410
FBC 5x15,5
44
40
25
15,5mm
35-70
15
553.510
FBC 5x20
49
40
31
20mm
70-185
15
553.520
