RFS Support
RFS Support
Product Features
Product Catalogue
Technical Documents
Certificates

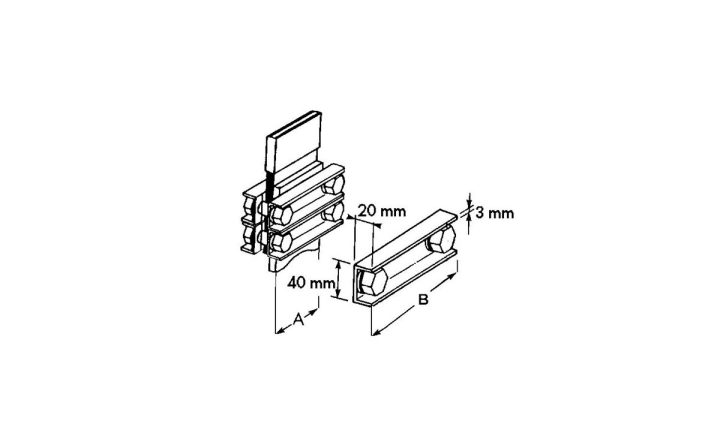

Dimensions
Can hold 8 pcs busbar in parallel position.
Can be mounted with 25mm steps on the plate.
Recommended distance between the brackets: 400 mm
İzolatörler ve Baralar
RFS Blok Tutucu Teknik Doküman
PDF
EXPLANATION
FLEXABLE BUSBAR TYPE
A(mm)
B(mm)
C(mm)
D(mm)
PACK OF
REFERENCES NO
RFS 40-63
40,50,63mm
150
175
90
120
1
553.370
RFS 80-100
80/100mm
200
225
140
170
1
553.380
