Relevance: TEOS, NEO Modular
Material: 3,00 mm / galvanized steel + RAL 7012 coating

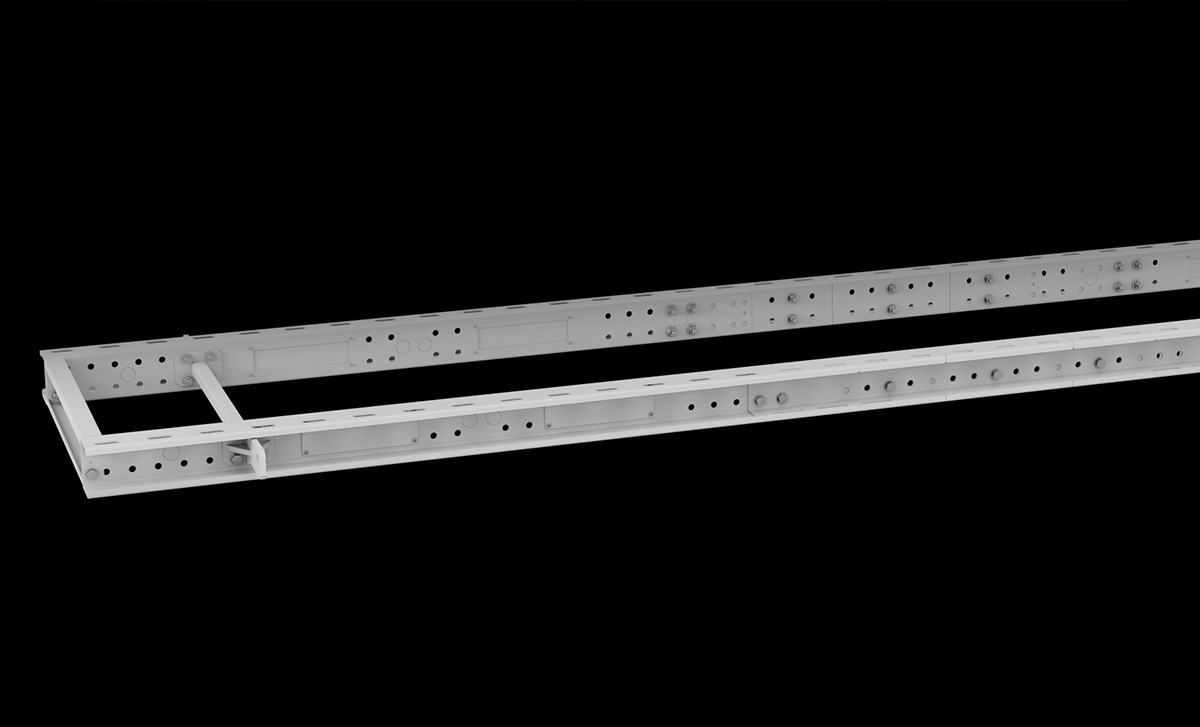

Supply Includes: Plinth width : 2 pcs plinth and combination parts. Plinth depth : 2 pcs plinth and combination parts.
REQUIRED: It is required M12x30 screw set for fixing (page 259)

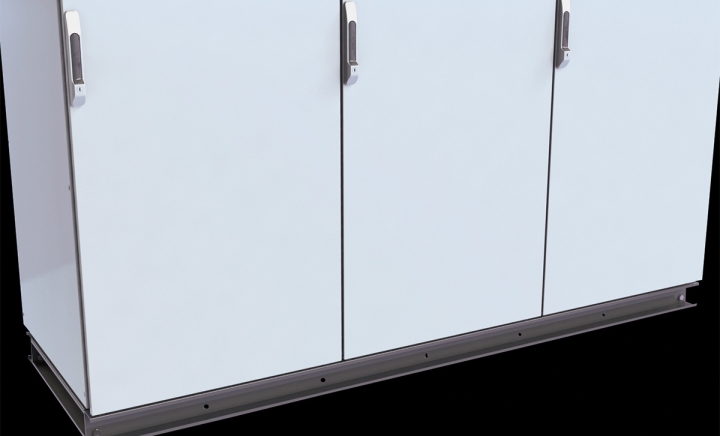

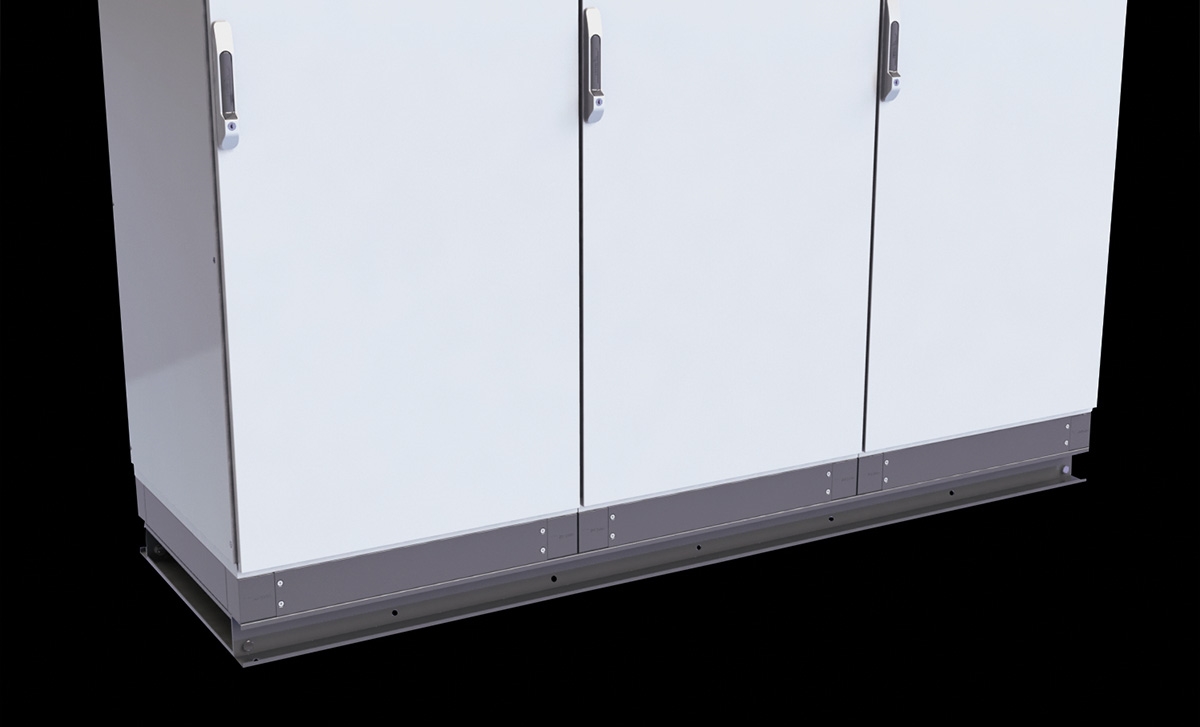

- Mounts the enclosures combined side-to-side on a single platform.
- Enclosures are connected to the plinth via M12 perforations placed on the
- combination corners.
- It gives advantages in the lifting and forklift.
- Enclosures can be mounted directly on the (standard) plinth.
- Please refer to our sales department for the manufacturing schedule.
PDF |
ENCLOSURE DEPTH(W) |
REFERENCES NO |
|
400 |
912.133 |
|
500 |
912.134 |
|
600 |
912.135 |
|
800 |
912.136 |
