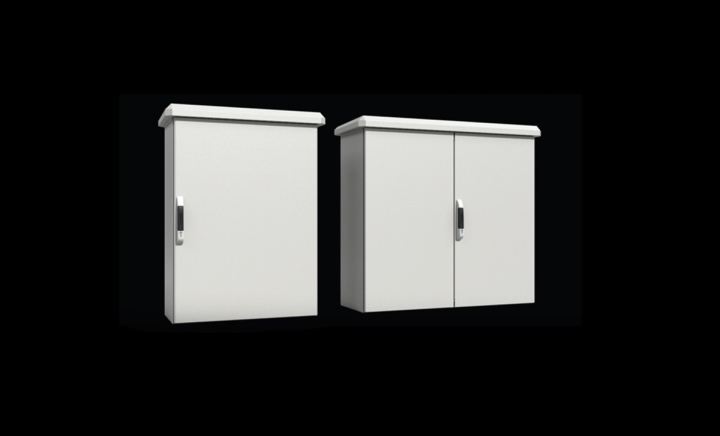

Materials :
- Main Body : 1,5mm Galvanized, Front Door: 1,5mm Mild Steel,
- Top / Rear Panel : 1-1,2mm Mild Steel,
- Side Panel : 1,5mm Galvanized, Roof: 1,5mm Galvanized + RAL 7035
- Surface Process : Iron-Phosphate + Electrostatic Powder Coating
IP Rate : IEC and EN 60529 Single Door - Double Door IP55
NEMA Rate : NEMA 3R
Corrosion Rate : EN ISO 12944-2 C3
Standards : IEC 62208 (Enclosure Standards)
Warranty : KYT-72
Supply Includes : Main Body, Front Door; Key Lock and 140 Openable Hinged, Rear Panel; Screwed and Secure, Top Cover, Bottom Cover
| PDF |
Ref.No. |
WIDTH (mm) |
HEIGHT (mm) |
DEPTH (mm) |
CLOSED |
2 FILTER CUT OUT |
4 FILTER CUT OUT |
SINGLE MODULE |
LEFT MODULE |
RIGHT MODULE |
MIDDLE MODULE |
DOOR |
LOCK |
 |
666.124.000 |
600 |
1200 |
400 |
633.124 |
634.124 |
635.124 |
934.264 |
934.364 |
934.464 |
934.564 |
1 |
1 |
|
666.126.000 |
600 |
1200 |
600 |
633.126 |
634.126 |
635.126 |
934.266 |
934.366 |
934.466 |
934.566 |
1 |
1 |
|
668.124.000 |
800 |
1200 |
400 |
633.124 |
634.124 |
635.124 |
934.284 |
934.384 |
934.484 |
934.584 |
1 |
1 |
|
668.126.000 |
800 |
1200 |
600 |
633.126 |
634.126 |
635.126 |
934.286 |
934.386 |
934.486 |
934.586 |
1 |
1 |
|
666.164.000 |
600 |
1600 |
400 |
633.164 |
634.164 |
635.164 |
934.264 |
934.364 |
934.464 |
934.564 |
1 |
1 |
|
666.166.000 |
600 |
1600 |
600 |
633.166 |
634.166 |
635.166 |
934.266 |
934.366 |
934.466 |
934.566 |
1 |
1 |
|
668.164.000 |
800 |
1600 |
400 |
633.164 |
634.164 |
635.164 |
934.284 |
934.384 |
934.484 |
934.584 |
1 |
1 |
|
668.166.000 |
800 |
1600 |
600 |
633.168 |
634.168 |
635.168 |
934.286 |
934.386 |
934.486 |
934.586 |
1 |
1 |
|
664.206.000 |
400 |
2000 |
600 |
633.206 |
634.206 |
635.206 |
934.246 |
934.346 |
934.446 |
934.546 |
1 |
1 |
|
664.208.000 |
400 |
2000 |
800 |
633.208 |
634.208 |
635.208 |
934.248 |
934.348 |
934.448 |
934.548 |
1 |
1 |
|
666.206.000 |
600 |
2000 |
600 |
633.206 |
634.206 |
635.206 |
934.266 |
934.366 |
934.466 |
934.566 |
1 |
1 |
|
666.208.000 |
600 |
2000 |
800 |
633.208 |
634.208 |
635.208 |
934.268 |
934.368 |
934.468 |
934.568 |
1 |
1 |
|
667.206.000 |
700 |
2000 |
600 |
633.206 |
634.206 |
635.206 |
934.276 |
934.376 |
934.476 |
934.576 |
1 |
1 |
|
667.208.000 |
700 |
2000 |
800 |
633.208 |
634.208 |
635.208 |
934.278 |
934.378 |
934.478 |
934.578 |
1 |
1 |
|
668.260.000 |
800 |
2000 |
600 |
633.206 |
634.206 |
635.206 |
934.286 |
934.386 |
934.486 |
934.586 |
1 |
1 |
|
668.280.000 |
800 |
2000 |
800 |
633.208 |
634.208 |
635.208 |
934.288 |
934.388 |
934.488 |
934.588 |
1 |
1 |
|
660.206.000 |
1000 |
2000 |
600 |
633.206 |
634.206 |
635.206 |
934.216 |
934.316 |
934.416 |
934.516 |
2 |
2* |
|
660.208.000 |
1000 |
2000 |
800 |
633.208 |
634.208 |
635.208 |
934.218 |
934.318 |
934.418 |
934.518 |
2 |
2* |
|
662.206.000 |
1200 |
2000 |
600 |
633.206 |
634.206 |
635.206 |
934.226 |
934.326 |
934.426 |
934.526 |
2 |
2* |
|
662.208.000 |
1200 |
2000 |
800 |
633.208 |
634.208 |
635.208 |
934.228 |
934.328 |
934.428 |
934.528 |
2 |
2* |
